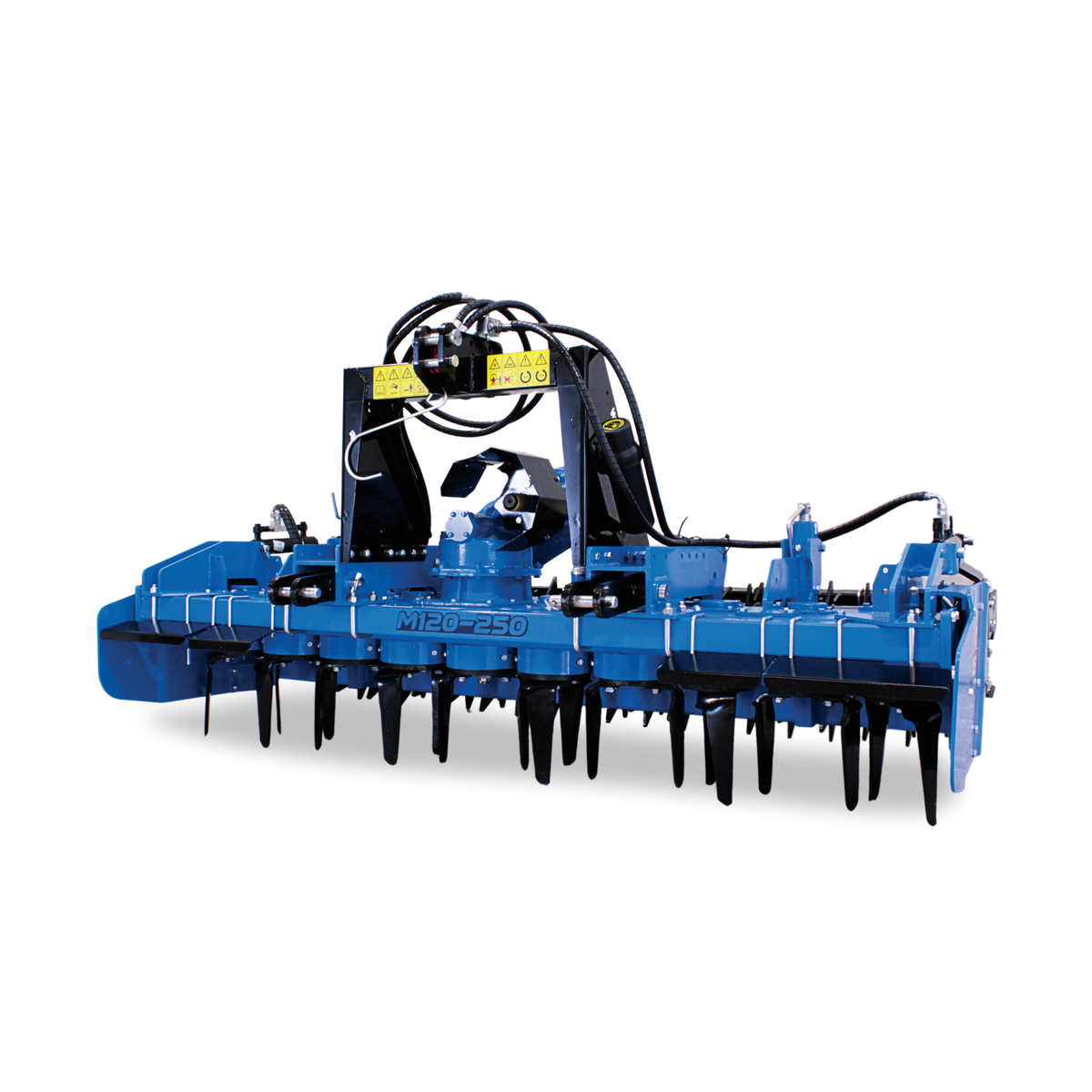

The LS M120 rotary harrow is a heavier version of the machine, designed for medium-sized tractors from 80 to 120 HP.

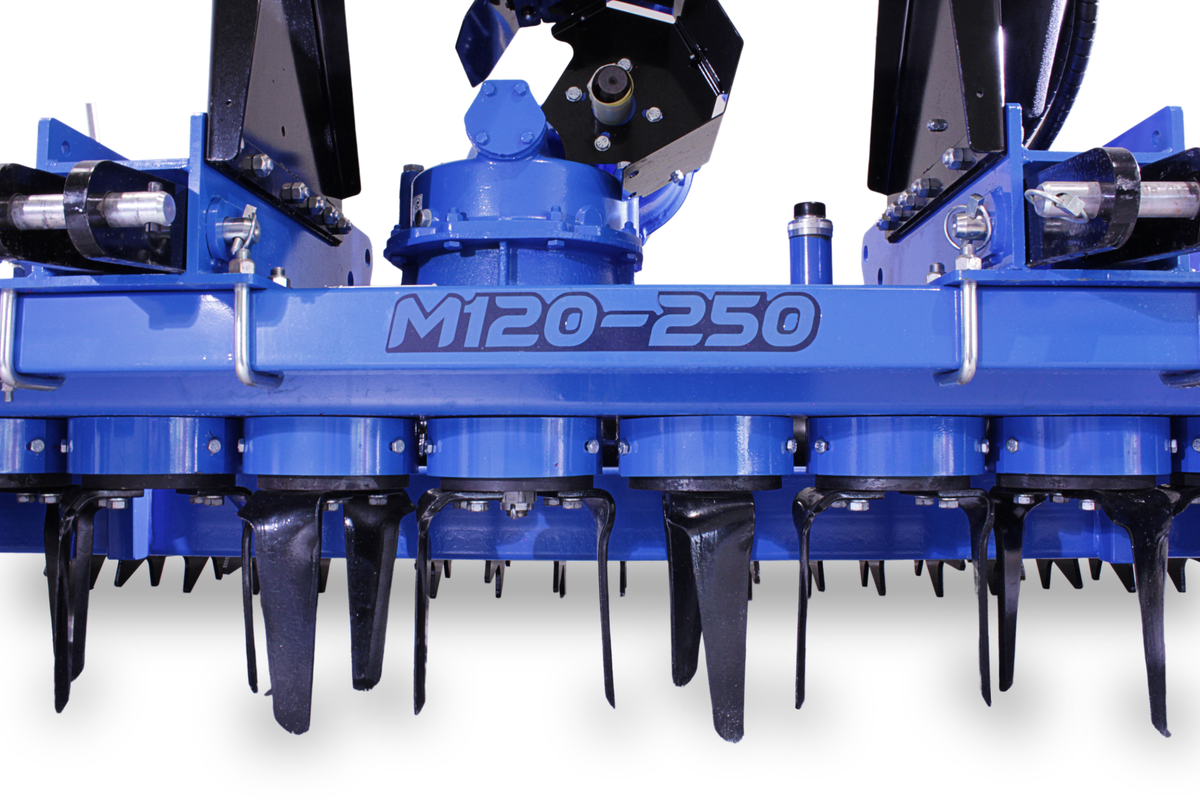

The blades are made of specially designed high-hardness steel, 12 mm thick and 28 cm long, allowing high-quality soil cultivation, even in loamy soil.
The sturdy steel construction is powder-coated, enabling the harrow to be used with tractors from 80 horsepower and above.
Two versions are available: 2.5 meters and 3 meters.
The leveling bar is part of the standard equipment and is height-adjustable.
The side plates, which prevent soil from being ejected beyond the cultivated area, are floating and adapt to the working depth and terrain shape.

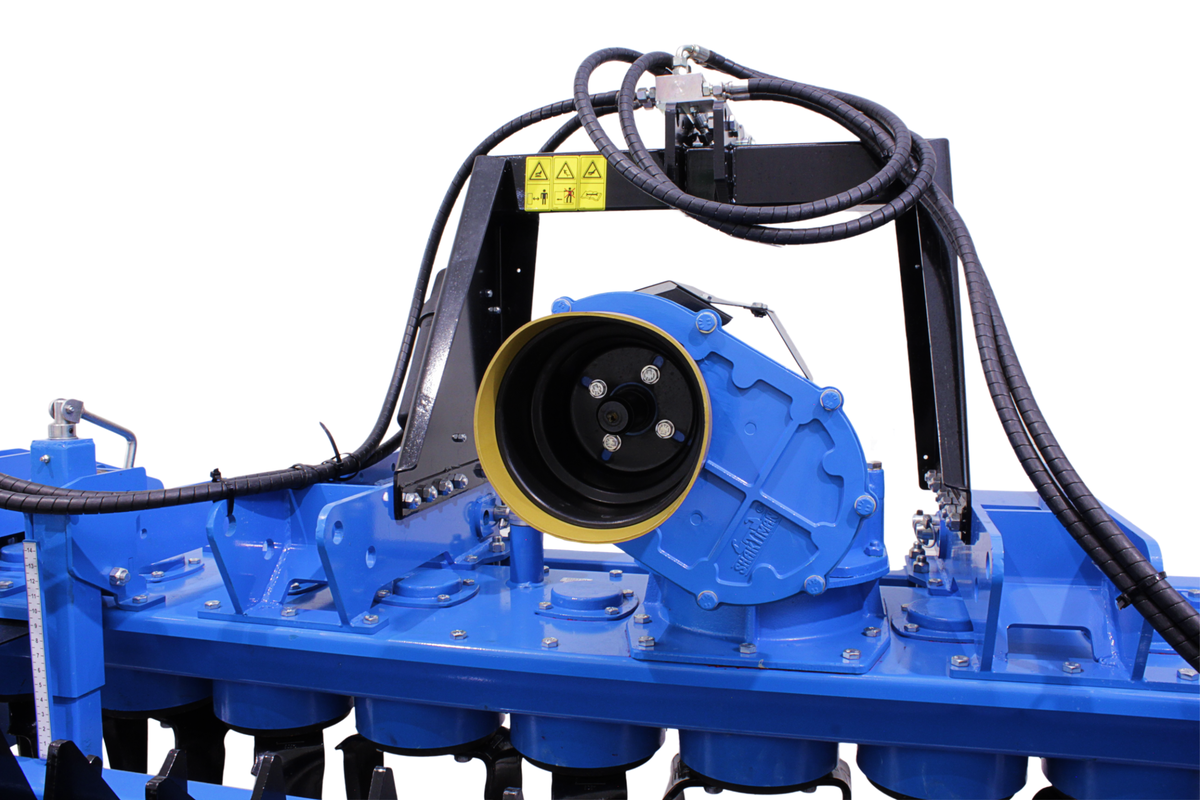

The gear transmissions in the reducer are housed in an oil bath, ensuring long-lasting and trouble-free operation of the rotary harrow.

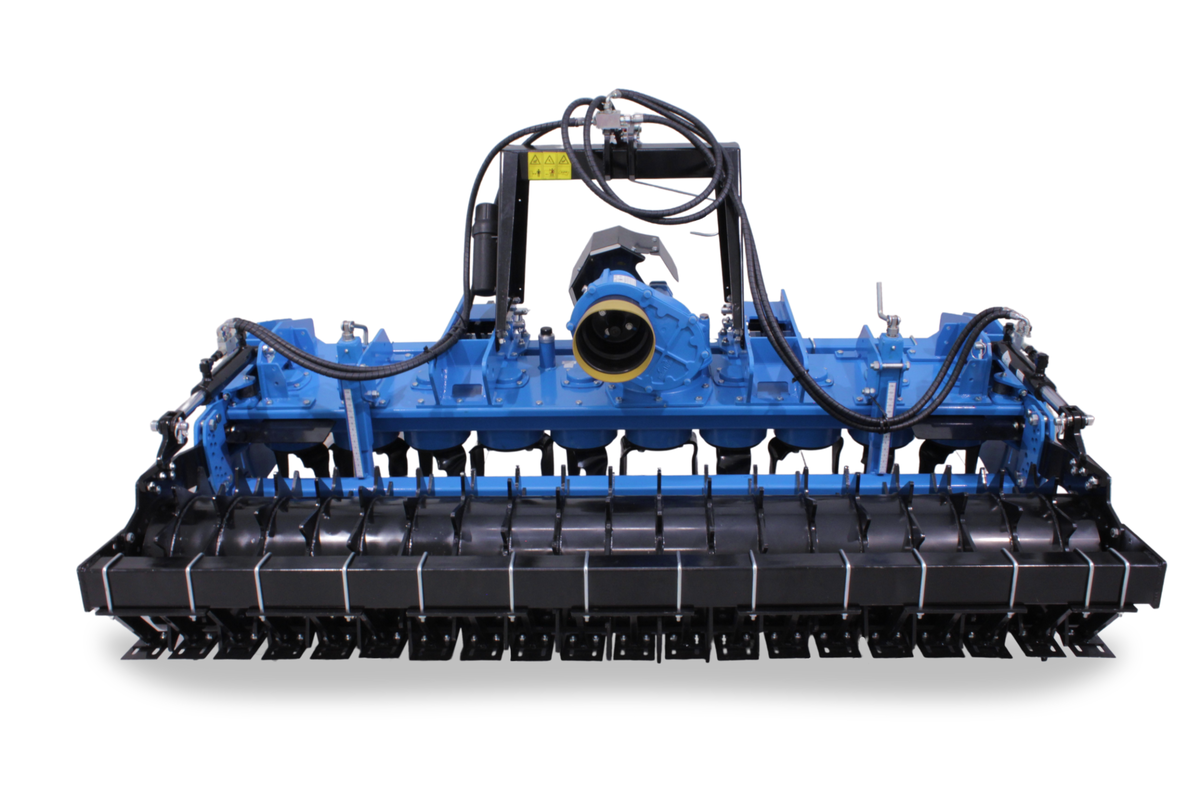

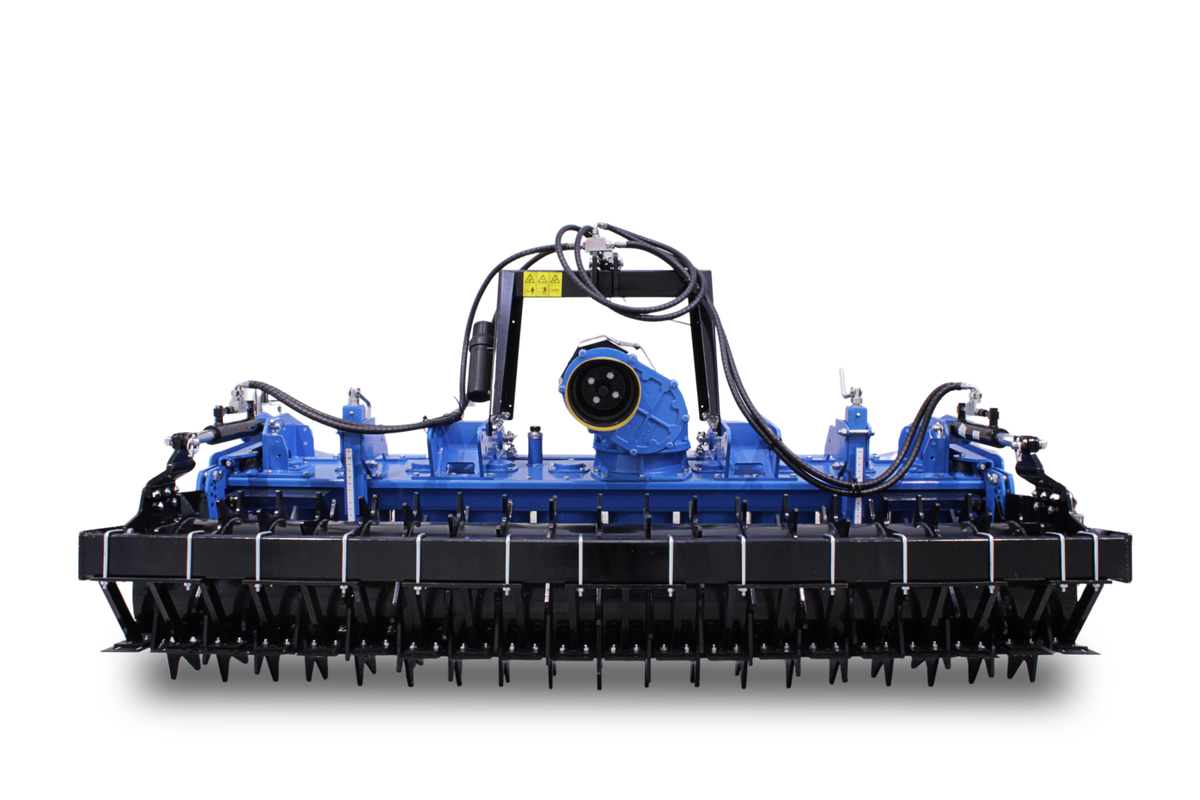

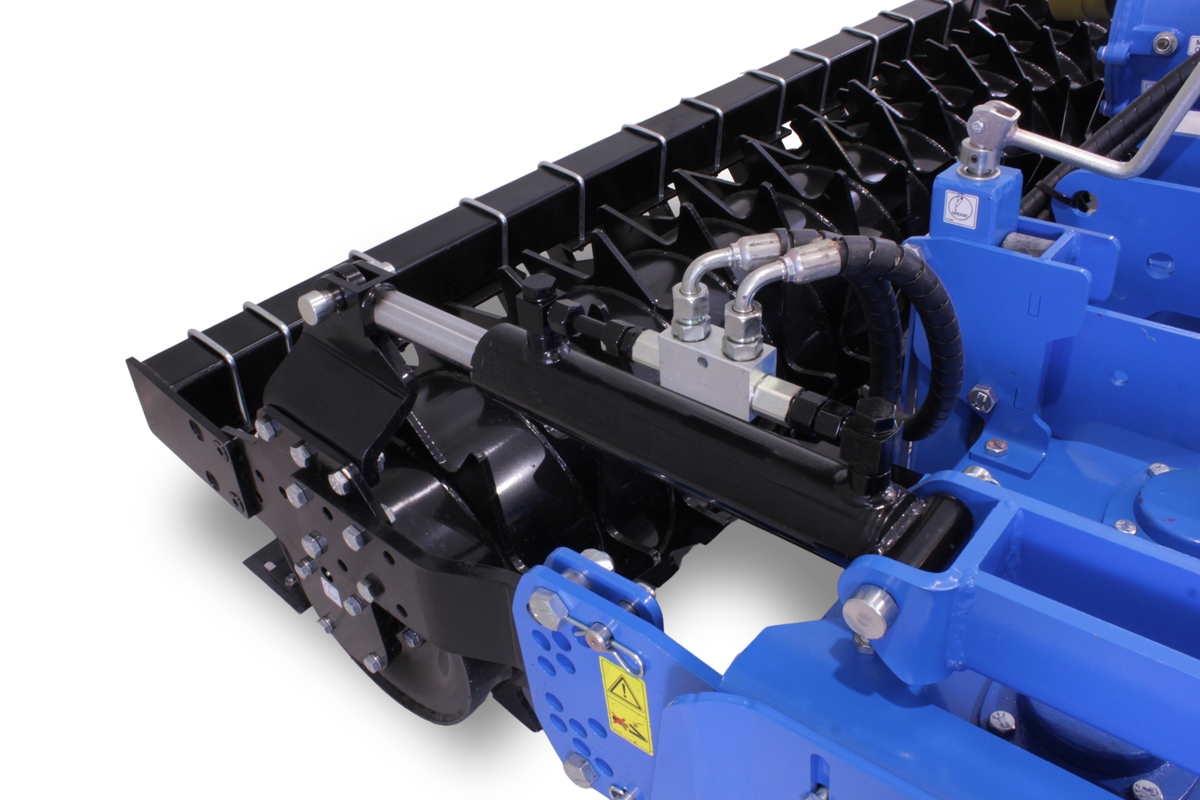

Behind the harrow, there is a hydraulically adjustable solid packer roller (diameter 50 cm), which further breaks up soil clumps, levels, and consolidates the seedbed, making it optimally prepared for sowing.
It is also equipped with a multi-speed gearbox, which further increases work efficiency under different soil hardness conditions.

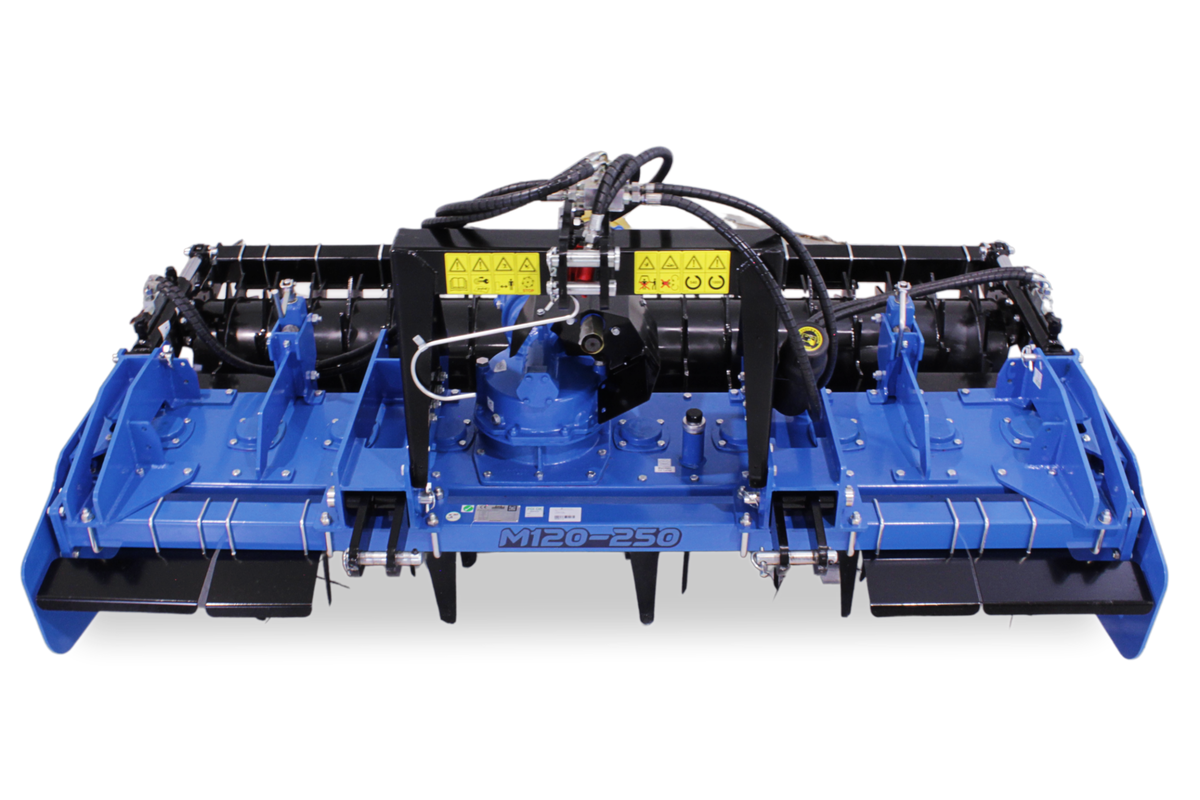

M120 - 250

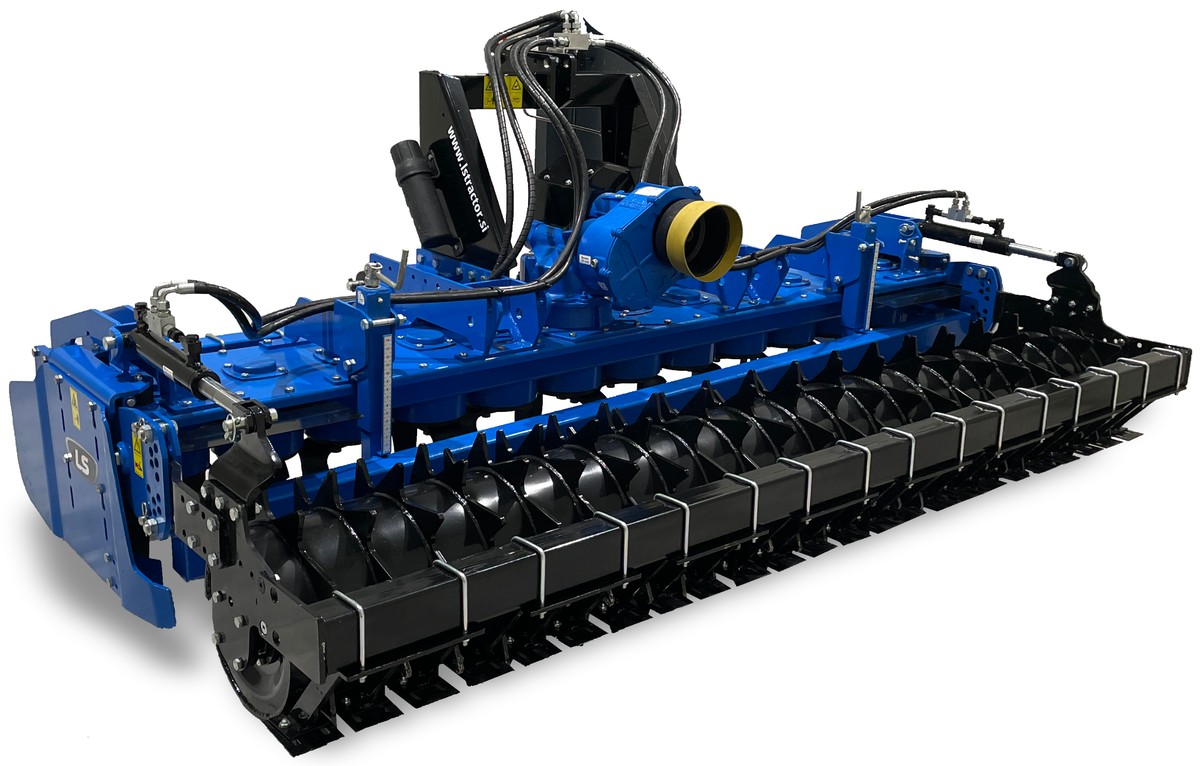

M120 - 300
| Model | M120 - 250 | M120 - 300 |
|---|---|---|
| Number of knives | 20 | 24 |
| Working width (cm) | 250 | 300 |
| Recommended minimum tractor power (HP) | Text: 80-100 | Text: 100-120 |
| Connection category | CAT ||,||| | CAT ||,||| |
| Revolutions of the drive shaft (rpm) | 540/1000 | 540/1000 |
| Dimensions (L x W x H) (cm) | 259 x 165 x 124 | 308 x 165 x 124 |
| Weight (with cylinder) (kg) | 1060 | 1200 |
|
